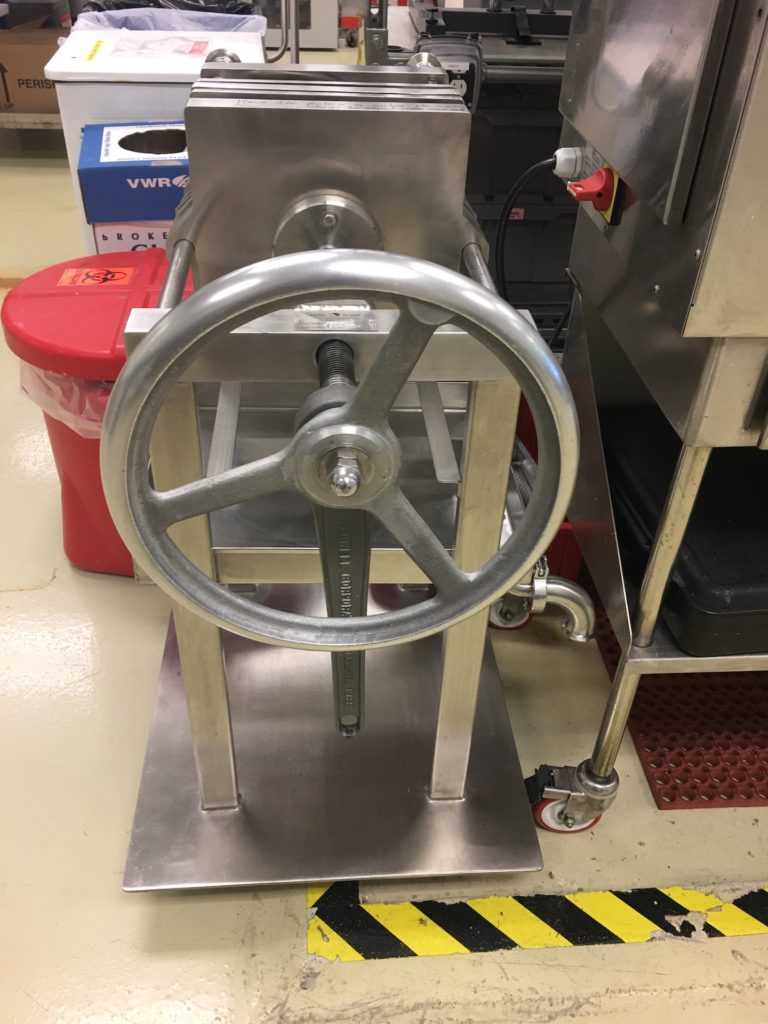

The ErtelAlsop EFS 12″ Series Filter Press offers an economical solution for efficient, ultra-fine filtration.
Processes: For food & beverages, pharmaceuticals, cosmetics, oils, chemicals, utilities
Equipment specification:
- – 316 SS
- 1″ inch Tri-Clamp Fittings
- 4 ports ( 2 outlet / 2 inlet)
- Pressure Limit: < 35 psi
- Flow Rate: < 50 gpm (190 lpm) *pressure limited
- Dimension: 1 m x 0.45 m x 0.75 m
Filtration plates:
- Number of Plates: 1 – 5
- Filters per Plate: 2
- Filters: 2- 10
- Cake Volume per Plate: 0.38 gal (1.45 L)
- Dimension: 12″ in square (305 mm)
- Internal Dimensions: 27.7cm x 27.7cm x 2.54cm
Filter pads:
- Pore Size: 0.25 um – 15 um
- Area per Filter: 0.82 ft2 (0.076 m2)
